Bag and Membrane Relay – BMR
Description
The Bag and Membrane Relay

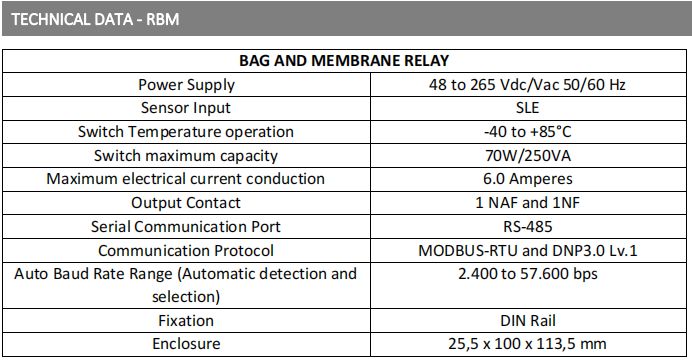

Specification
48 up to 265 Vdc/Vac Range
Application
Used for oil bag breakage monitoring
parameters
Relay
Feature
The principle of optics is used
- Description
- Type parameter
-
- Commodity name: Bag and Membrane Relay – BMR
- 规格1: 48 up to 265 Vdc/Vac Range
- 应用: Used for oil bag breakage monitoring
- 类型: Relay
- 特征: The principle of optics is used
The Bag and Membrane Relay
- Universal Power Supply with 48 up to 265 Vdc/Vac Range;
- Micro ProcessedRelay Moduleand with High Speed operation;
- Compactenclosure with 22,5x100x113,5mm(8,85x39,37x44,68inches) on ABS to 13,77DIN rails;
- Stainless steel Sensor AISI-304, Dimensions; 14x70/ M16x70mm;
- A 6A Relaywith NOCcontacts and with programmable logic;
- A 6A NCContactRelayfor instrument failureindication or on Watchdog Sensor;
- Exclusive Connectors with Pluggable System;
- RS-485 digital output with Modbus RTU and DNP3 L1;
- Auto Baud Ratewith automatic detection and automatic selection between a 2.400 up to 57.600 bps range;
- USB 2.0 frontal para parametrização através do software UseEasy™;
- Frontal Micro USB for UseEasy™SoftwareSetting;
- Easy Application and Installation;
- 2 Years Warranty;
-
